Gift Card API

162 min read

Table of Contents

Introduction to Gift Cards
GeneratePass
UpdatePassData
GetPassData
GetPassTemplate
CreatePassIssuanceLink
UpdatePassIssuanceLink
CreatePassTemplate
UpdatePassTemplate

Introduction to Gift Cards #

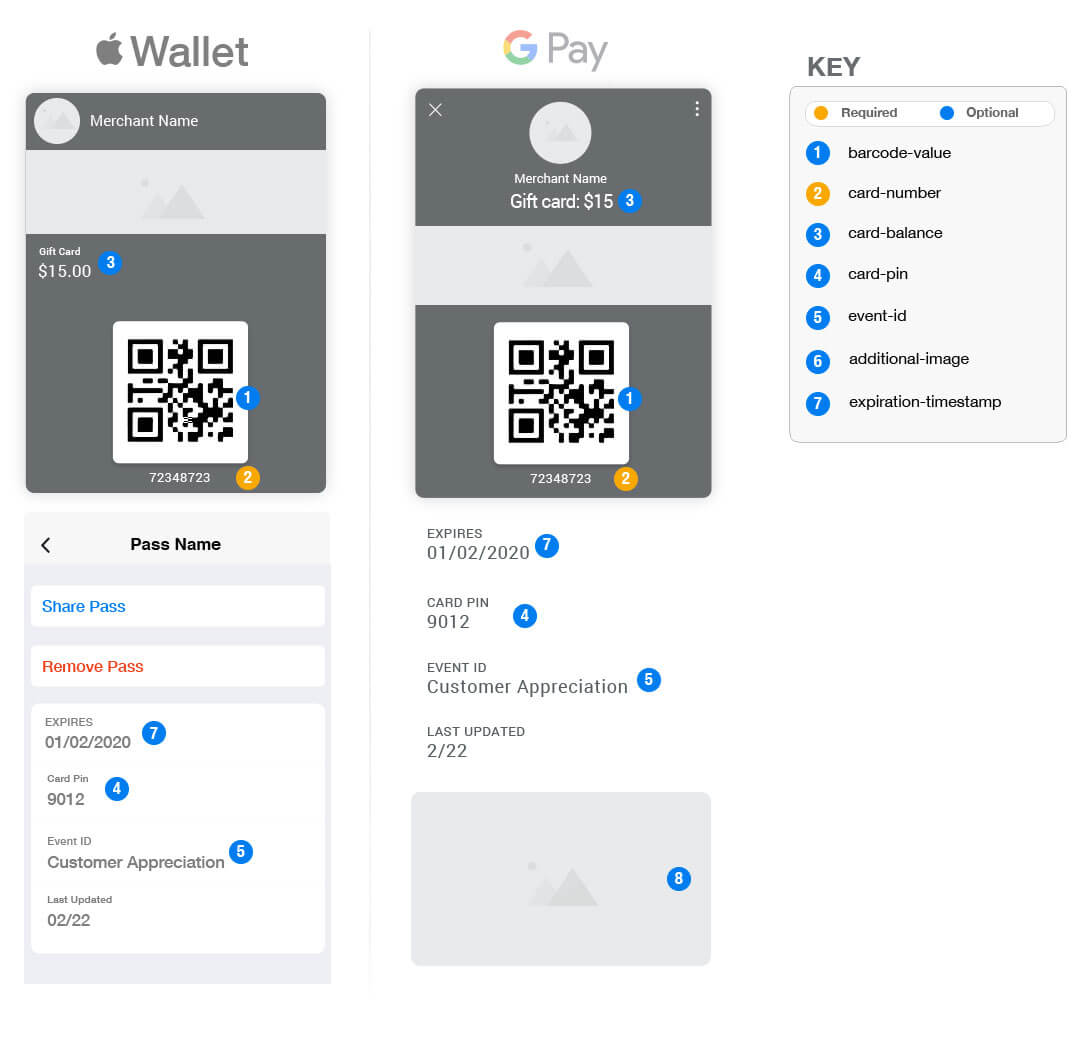

The following image shows where the fields used in the API calls will appear on gift cards for both Apple Wallet and Google Pay. Any fields shown on gift cards but not linked to the key in the image are required in the Pass Template Builder, therefore, they will always be shown on the pass. In this case, those fields are the Merchant Name and the ‘Last Updated’ field.

The following table provides a detailed description of certain variables that can be used in each API call for gift cards. The following text fields from the Pass Template Builder are not dynamic, therefore, you will not see these fields in the API calls for gift cards: Merchant Name, Message 1, Message 2, Text Module, Info Module, Home Page URI, Link 1 and Link 2. The format column explains whether the variable is mandatory or optional.

Params/Variables	Format	Description
action	Mandatory, Alphabetic (a-zA-Z)	This is the name of the function you want to execute with the API.
x-api-key	Mandatory, Alphanumeric (a-zA-Z0-9), Case-Sensitive. This is set as a request header param.	This is a random key that is assigned to an account and can be used for authorization. You can find and regenerate this key on the ‘API Settings’ page.
pass-template-id	Mandatory, Alphanumeric (a-zA-Z0-9), Case-Sensitive	The unique Pass Template ID used to reference a particular Pass Template.
pass-id	Mandatory, Alphanumeric (a-zA-Z0-9), Case-Sensitive	The identifier from your system to identify the pass or pass data uniquely.
reference-data	Optional, Alphanumeric (a-zA-Z0-9)	This is used for adding additional information related to the pass.
barcode-value	Optional, Alphanumeric (a-zA-Z0-9)	The unique barcode value associated with a specific pass-id.
expiration-timestamp	Optional. “expiration-timestamp” should be in UTC. Example: 2013-02-19T15:54:50Z	The timezone offset is ignored and always considers the timestamp in UTC.
expiration-timezone	Optional. “expiration-timezone” should be in long name format. Example: America/New_York	Use the long names listed in the Appendix for your reference.
card-number	Mandatory, Alphanumeric (a-zA-Z0-9)	The gift card number. This number appears below the barcode on both Apple Wallet and Google Pay Passes.
card-balance	Optional, Numeric (0-9)	The monetary value or balance of the gift card.
card-pin	Optional, Alphanumeric (a-zA-Z0-9)	The PIN number for the gift card. Most gift cards use a PIN number as an additional security method for authentication purposes.
event-number	Optional, Alphanumeric (a-zA-Z0-9)	The event number field is used by some merchants to further identify the gift card.
additional-image	Optional, Alphanumeric (A-Za-z0-9). Web URL	This image is displayed only on Google Pay Passes below the pass, in between the additional details.
strip-image	Optional, Alphanumeric (A-Za-z0-9). Web URL – Accepts PNG images only	The strip image is displayed below the logo and Merchant Name on both Apple Wallet and Google Pay Passes, as a rectangular image across the middle of the Pass. This will override any image set as strip image for the pass template.
relevant-locations (1-10) (relevant-1, relevant-2, etc..)	Optional, Alphanumeric (a-zA-Z0-9) Format: “key”:”relevant-1″, “latitude”:”COORDINATES”, “longitude”:”COORDINATES”, “relevant-text”:”RELEVANCE TEXT”	Custom relevant text is only applicable for Apple Wallet Passes. If you set a relevant location, Android devices will display default text. When adding more than one relevant location, be sure to change the “key” to relevant-2, relevant-3, etc..
ibeacons (1-10) (ibeacon-1, ibeacon-2, etc..)	Optional, Alphanumeric (a-zA-Z0-9) Format: “key”:”ibeacon-1″, “proximity-uuid”:”UUID VALUE”, “major”:”MAJOR VALUE”, “minor”:”MINOR VALUE”, “relevant-text”:”RELEVANCE TEXT”	ibeacons are only applicable for Apple Wallet Passes. When adding more than one ibeacon, be sure to change the “key” to ibeacon-2, ibeacon-3, etc..
user-email	Optional, Alphanumeric (a-zA-Z0-9) Accepts a valid email ID string.	The email will be stored as meta data for the generated Pass and will be used for the automated integrations, if any, for different Pass events to communicate with the end-user, via email.
user-phone	Optional, Numeric (0-9) Accepts a valid phone number.	The phone number will be stored as meta data for the generated Pass and will be used for the automated integrations, if any, for different Pass events to communicate with the end user, via SMS/MMS.

GeneratePass #

The generate pass API will generate a unique installation link for a gift card. If you try to call this API again without changing the ‘pass-id’ field, it will return an error message and fail to generate the installation link for the gift card. To call this API again successfully, you will need to use a different ‘pass-id’.

Request: Gift Card

Copy to Clipboard

Header:
X-Api-Key : XXXXXXXXXXXXXXXXXXXXXXXXX

Request:
{
   "action":"generatepass",
   "pass-template-id":"PASS TEMPLATE ID",
   "pass-id":"UNIQUE CUSTOMER PASS ID",
   "reference-data": {
 "Reference": "reference data of the customer",
      },
   "pass-data":{
        "barcode-value":"BARCODE VALUE",
        "card-number":"CARD NUMBER VALUE",
        "card-balance":"GIFT CARD BALANCE",
        "card-pin":"PIN VALUE",
        "event-number":"EVENT NUMBER VALUE",
        "additional-image":"ADDITIONAL IMAGE",
	“strip-image” : “STRIP IMAGE”,
        "expiration-timestamp”:”EXPIRATION TIMESTAMP”,
        "expiration-timezone":"TIMEZONE",
        "relevant-locations":[         // 10 fields
         {
            "key":"relevant-1",
            "latitude":"COORDINATES",
            "longitude":"COORDINATES",
            "relevant-text":"RELEVANCE TEXT"
         },
         {
            "key":"relevant-2",
            "latitude":"COORDINATES",
            "longitude":"COORDINATES",
            "relevant-text":"RELEVANCE TEXT"
         },
         …
      ],
      "ibeacons":[                      // 10 fields
         {
            "key":"ibeacon-1",
            "proximity-uuid":"UUID VALUE",
            "major":"MAJOR VALUE",
            "minor":"MINOR VALUE",
            "relevant-text":"RELEVANCE TEXT"
         },
         {
            "key":"ibeacon-2",
            "proximity-uuid":"UUID VALUE",
            "major":"MAJOR VALUE",
            "minor":"MINOR VALUE",
            "relevant-text":"RELEVANCE TEXT"
         },
         …
      ]
   }
   “pass-meta-data” : {
   	“user-email” : “USER EMAIL ID”,
   	“user-phone” : “USER PHONE NUMBER”
   }
}

Request Example: Gift card

Copy to Clipboard

Header:
X-Api-Key : xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Request:
{
    "action":"generatepass",
    "pass-template-id":"xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
    "pass-id":"Gift Card_1",
    "reference-data": {
  "email": "fake.email@email.com",
  "phone": "10000000000",
  "transaction-id": "96"
          },
    "pass-data":{
        "barcode-value":"ASDE96325",
        "card-number":"9632545",
        "card-balance":"65",
        "card-pin":"4236",
        "event-number":"JAN_456",
        "additional-image":"https://fake-content-url.com/additional-image.png",
        "expiration-timestamp”: "2019-02-01T10:46:46+00:00”,
        "expiration-timezone":"Australia/Sydney",
        "relevant-locations":[
            {
                "key":"relevant-1",
                "latitude":"42.369169",
                "longitude":"-71.237371",
                "relevant-text":"Come grab some popcorn!"
            }
        ],
        "ibeacons":[
            {
                "key":"ibeacon-1",
                "proximity-uuid":"111111",
                "major":"222222",
                "minor":"3333333",
                "relevant-text":"Come grab some popcorn!"
            }
        ]
   “pass-meta-data” : {
   	“user-email” : “fake.email@email.com”,
   	“user-phone” : “10000000000”
   }
}

Response Success Example:

Copy to Clipboard

Response Failure Example:

Copy to Clipboard

UpdatePassData #

The update pass data API is used to update pass data for a gift card that has already been installed on a device. If you do not add a new “pass-id’ for the gift card, you will receive an error message and the gift card will not be updated until you add a new ‘pass-id’. The field for ‘pass-status’ will accept the following values: “redeemed”, “expired”, “voided”, “active”.

Request: Gift card

Copy to Clipboard

Header:
X-Api-Key : XXXXXXXXXXXXXXXXXXXXXXXX

Request:
{
    "action":"updatepassdata",
    "pass-id":"UNIQUE CUSTOMER PASS ID",
    “pass-template-id”: “PASS TEMPLATE ID”,
    "new-pass-id":"NEW UNIQUE CUSTOMER PASS ID",
    "priority":TRUE/FALSE,
    "pass-data":{
        "barcode-value":"BARCODE VALUE",
        "card-number":"PASS CARD VALUE",
        "card-balance":"GIFT CARD BALANCE",
        "card-pin":"PIN VALUE",
        "event-number":"EVENT NUMBER VALUE",
        "additional-image":"ADDITIONAL IMAGE",
	“strip-image” : “STRIP IMAGE”,
        "pass-status":"STATUS OF THE PASS",
        "pass-update-notification":"NOTIFICATION FOR PASS UPDATE",
        "expiration-timestamp:”EXPIRATION TIMESTAMP”,
        "expiration-timezone":"TIMEZONE",
        "relevant-locations":[         // 10 fields
         {
            "key":"relevant-1",
            "latitude":"COORDINATES",
            "longitude":"COORDINATES",
            "relevant-text":"RELEVANCE TEXT"
         },
         {
            "key":"relevant-2",
            "latitude":"COORDINATES",
            "longitude":"COORDINATES",
            "relevant-text":"RELEVANCE TEXT"
         },
         …
      ],
      "ibeacons":[                      // 10 fields
         {
            "key":"ibeacon-1",
            "proximity-uuid":"UUID VALUE",
            "major":"MAJOR VALUE",
            "minor":"MINOR VALUE",
            "relevant-text":"RELEVANCE TEXT"
         },
         {
            "key":"ibeacon-2",
            "proximity-uuid":"UUID VALUE",
            "major":"MAJOR VALUE",
            "minor":"MINOR VALUE",
            "relevant-text":"RELEVANCE TEXT"
         },
         …
      ]
    “pass-meta-data” : {
   	“user-email” : “USER EMAIL ID”,
   	“user-phone” : “USER PHONE NUMBER”
   }
}

Request Example: Gift card

Copy to Clipboard

Header:
X-Api-Key : xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Request:
{
    "action":"updatepassdata",
    "pass-id":"Gift card_1",
    “pass-template-id”: “xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx”,
    "new-pass-id":"Gift card_2",
    "priority":true,
    "pass-data":{
        "barcode-value":"ASDFGH123",
        "card-number":"9632545",
        "card-balance":"65",
        "card-pin":"4236",
        "event-number":"JAN_456",
        "additional-image":"https://fake-content-url.com/additional-image.png",
        "pass-status":"active",
        "expiration-timestamp”: "2019-02-01T10:46:46+00:00”,
        "expiration-timezone":"Australia/Sydney",
        "pass-update-notification":"Pass has been updated with new values",
        "relevant-locations":[
            {
                "key":"relevant-1",
                "latitude":"42.369169",
                "longitude":"-71.237371",
                "relevant-text":"Come grab some popcorn!"
            }
        ],
        "ibeacons":[
            {
                "key":"ibeacon-1",
                "proximity-uuid":"111111",
                "major":"222222",
                "minor":"3333333",
                "relevant-text":"Come grab some popcorn!"
            }
        ]
   “pass-meta-data” : {
   	“user-email” : “fake.email@email.com”,
   	“user-phone” : “10000000000”
   }
}

Response Success Example: Gift Card

Copy to Clipboard

Response Failure Example: Gift Card

Copy to Clipboard

GetPassData #

The get pass data API is used to retrieve data for a specific gift card that has already been installed on a device. This data may include the gift card holder’s name or the gift card balance. If you do not enter the correct ‘pass-id’ for the gift card that you are trying to retrieve, you will receive an error code.

Request: Gift Card

Copy to Clipboard

Request Example: Gift Card

Copy to Clipboard

Response Success Example: Gift Card

Copy to Clipboard

{
    "status":"Success",
    "pass-id":"161783893285c2f4bcc68660",
    "pass-template-id":"xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
    "pass-data":{
        "logo-url":"https://fake-content-url.com/logo.png",
        "merchant-name":"GIFT CARD - 24-12",
        "barcode-value":"ASDH678",
        "card-number":"8965",
        "card-balance":"AFN9",
        "card-pin":"334234",
        "event-number":"C",
        "additional-image":"https://fake-content-url.com/additional-image.png",
        "strip-image":"https://fake-content-url.com/strip-image.png",
        "message1":"Your gift card never expires!",
        "message2":"View all of the locations where you can redeem your gift card",
        "message3":"Check out the new upcoming sales!",
        "text-module":"Need help? Contact us at 16173147688",
        "info-module":"Check out deals in your area. Visit: https://fake-home-page-uri.com",
        "link1-URI":"tel://90290",
        "link2-URI":"geo://36.9665,45.6666",
        "home-page-URI":"https://fake-home-page-uri.com",
        "relevant-locations":[
            {
                "key":"relevant-1",
                "latitude":"42.3959218",
                "longitude":"-71.1283257",
                "relevant-text":"Come grab some popcorn before your movie starts!"
            }
        ],
        "ibeacons":[
            {
                "key":"ibeacon-1",
                "proximity-uuid":"111111",
                "major":"222222",
                "minor":"3333333",
                "relevant-text":"Come grab some popcorn before your movie starts!"
            }
        ]
    }
}

Response Failure Example: Gift Card

Copy to Clipboard

GetPassTemplate #

The get Pass Template API is used to retrieve a specific gift card Pass Template. To retrieve the specific gift card Pass Template you will need the correct ‘pass-template-id’ associated with the Pass Template.

Request: Gift Card

Copy to Clipboard

Request Example: Gift Card

Copy to Clipboard

Response Success Example: Gift Card

Copy to Clipboard

{
    "status":"Success",
    "pass-template-id":"xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
    "pass-template":{
        "pass-name":"Gift Card 24-12",
        "pass-type":"Gift Card",
        "organization":"JOY",
        "description":"Mobile Wallet Card by JOY",
        "logo-url":"https://fake-content-url.com/logo.png",
        "merchant-name":"GIFT CARD - 24-12",
        "barcode-value":"ASDH678",
        "card-number":"8965",
        "card-balance":"AFN9",
        "card-pin":"334234",
        "event-number":"C",
        "additional-image":"https://fake-content-url.com/additional-image.png",
        "strip-image":"https://fake-content-url.com/strip-image.png",
        "message1":"Your gift card never expires!",
        "message2":"View all of the locations where you can redeem your gift card",
        "message3":"Check out the new upcoming sales!",
        "text-module":"Need help? Contact us at 16173147688",
        "info-module":"Check out deals in your area. Visit: https://fake-home-page-uri.com",
        "link1-URI":"tel://90290",
        "link2-URI":"geo://36.9665,45.6666",
        "home-page-URI":"https://fake-home-page-uri.com",
        "relevant-locations":[
            {
                "key":"relevant-1",
                "latitude":"42.3959218",
                "longitude":"-71.1283257",
                "relevant-text":"Come grab some popcorn before your movie starts!"
            }
        ],
        "ibeacons":[
            {
                "key":"ibeacon-1",
                "proximity-uuid":"111111",
                "major":"222222",
                "minor":"3333333",
                "relevant-text":"Come grab some popcorn before your movie starts!"
            }
        ]
    }
}

Response Failure Example: Gift Card

Copy to Clipboard

CreatePassIssuanceLink #

The CreatePassIssuanceLink API is used to create an issuance link for a gift card Pass. To create a gift card Pass Issuance Link you will need the correct ‘pass-template-id’ associated with the Pass Template being used for the issuance link. The issuance links can be used in emails or websites to generate Passes using customized data upon clicking the link. The following table provides a detailed description of certain variables that can be used in each API call to create or update Pass Issuance Links for gift cards.

Params/Variables	Format	Description
action	Mandatory, Alphabetic (a-zA-Z)	This is the name of the function you want to execute with the API and is Case-Insensitive.
x-api-key	Mandatory, Alphanumeric (a-zA-Z0-9), Case-Sensitive. This is set in the request header param.	This is a random key that is assigned to an account and can be used for authorization. You can find and regenerate this key on the ‘API Settings’ page.
link-name	Mandatory, Alphanumeric (a-zA-Z0-9)	The name of the Pass Issuance Link to be created.
link-expiration-timestamp	Optional. “link-expiration-timestamp” should be in Date/Time ISO 8601 format	The expiration date of the issuance links for a specific template. Issuance links will be valid and a Pass can be generated using the link until this date.
link-expiration-timezone	Required if link-expiration-timestamp is set. The “link-expiration-timezone” should be in long name format. Example: America/New_York	Use the long names listed in the Appendix for your reference.
link-generation-limit	Optional, Numeric (0-9)	Limits the number of unique Pass Issuances for a specific Pass Template. If no value is set then it is considered UNLIMITED.
link-status	Optional. Accepted values: “ACTIVE” or “INACTIVE”	Status of the Pass Issuance Link for a specific Pass Template.
update-pass-data	Optional. Accepted values:”true” or “false”	If this is set to true, this will update pass data via the issuance link. By default the value is set to false.
encryption-settings	Optional	Define Pass Issuance Link encryption settings.
encryption-name	Optional. Accepted values: “AES-CBC”	Standard Encryption Algorithms supported. Only 256 bit is supported in the API.
secret-key	Required if “encryption-name” is provided. Alphanumeric (a-zA-Z0-9)	This is a 32 character long password for encrypting data within the issuance link.
iv	Required if “encryption-name” is provided. Alphanumeric (a-zA-Z0-9)	This is a 16 character long string to be used as an initialization vector for encryption.
link-protection	Optional	Define Pass Issuance Link protection settings.
checksum	Optional. Accepted values: “CRC32”, “SHA256”, “SHA384”, or “SHA512”	Standard data integrity check algorithms are supported.
checksum-applied	Required if “checksum” is provided. Accepted values: “query-string” (applied only on the query string part of the link), or “full-link” (applied on the full link)	This defines which part of the issuance link the protection is applied on.
pass-template-id	Required, Alphanumeric (a-zA-Z0-9)	This is the ID of the Pass Template that the Pass Issuance Link will be generated for.
pass-variables	Required	Define the list of Pass variables and their required properties to be used in the Pass Issuance Link.

Request: Gift Card

Copy to Clipboard

Header:
X-Api-Key : XXXXXXXXXXXXXXXXXXXX

Request:
{
	"action": "createPassIssuanceLink",
	"link-name": "PASS ISSUANCE LINK TEMPLATE NAME",
	"link-expiration-timestamp": "EXPIRATION TIMESTAMP ISO 8601 FORMAT",
	"link-expiration-timezone": "EXPIRATION TIMEZONE OF PASS ISSUANCE LINK",
	"link-generation-limit" : "MAX. NUMBER OF UNIQUE PASSES TO BE GENERATED",
	"link-status" : "STATUS OF THE LINK",
	“update-pass-data” :  true/false,
	"encryption-settings:" {
		"encryption-name": "AES_CBC",
		"secret-key": "SECRET KEY",
		"iv": "INITIALIZATION VECTOR"
		},
	"link-protection": {
		"checksum": "CRC32 / SHA256 / SHA384 / SHA512",
		"checksum-applied": "FULL-LINK / QUERY-STRING"
		}
	"pass-template-id": "PASS TEMPLATE ID",
	"pass-variables":{
		"gift-card-number": {
			"is-required": true,
			"value-encryption": true / false
			},
	"pass-id": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"expiration-timestamp": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"expiration-timezone": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"additional-image": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"additional-image-text": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"strip-image": {
		"is-required": true/false,
		"value-encryption": true/false
		},
	"card-balance-value": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"card-pin-value": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"event-number": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"barcode-value": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"user-email": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"user-phone": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"relevance-location-address1": { // 10 fields
		"is-required": true / false,
		"value-encryption": true / false
		},
	"relevance-location-latitude1": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"relevance-location-longitude1": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"relevance-text1": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"relevance-location-address2": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"relevance-location-latitude2": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"relevance-location-longitude2": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"relevance-text2": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"ibeacon-uuid1": { // 10 fields
		"is-required": true / false,
		"value-encryption": true / false
		},
	"ibeacon-major1": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"ibeacon-minor1": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"ibeacon-relevance-text1": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"ibeacon-uuid2": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"ibeacon-major2": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"ibeacon-minor2": {
		"is-required": true / false,
		"value-encryption": true / false
		},
	"ibeacon-relevance-text2": {
		"is-required": true / false,
		"value-encryption": true / false
		}
	}
}

Request Example: Gift Card

Copy to Clipboard

Response Success Example: Gift Card

Copy to Clipboard

Response Failure Example: Gift Card

Copy to Clipboard

UpdatePassIssuanceLink #

The UpdatePassIssuanceLink API is used to update an issuance link for a gift card Pass. To update a gift card Pass Issuance Link you will need the correct ‘pass-template-id’ associated with the Pass Template being used for the issuance link.

Request: Gift Card

Copy to Clipboard

Header:
X-Api-Key : XXXXXXXXXXXXXXXXXXXXXX

Request:
{
	"action": "UpdatePassIssuanceLink",
	"link-name": "PASS ISSUANCE LINK TEMPLATE NAME",
        "issuance-link-id": "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
	"link-expiration-timestamp": "EXPIRATION TIMESTAMP ISO 8601 FORMAT",
	"link-expiration-timezone": "EXPIRATION TIMEZONE OF PASS ISSUANCE LINK",
	"link-generation-limit" : "MAX. NUMBER OF UNIQUE PASSES TO BE GENERATED",
        "link-status" : "STATUS OF THE LINK",
        “update-pass-data” :  true/false,
	"encryption-settings:" {
		"encryption-name": "AES_CBC",
		"secret-key": "SECRET KEY",
		"iv": "INITIALIZATION VECTOR"
                },
	"link-protection": {
		"checksum": "CRC32 / SHA256 / SHA384 / SHA512",
		"checksum-applied": "FULL-LINK / QUERY-STRING"
                }
	"pass-template-id": "PASS TEMPLATE ID",
	"pass-variables":{
                "gift-card-number": {
   	                "is-required": true,
   	                "value-encryption": true / false
                },
                "pass-id": {
   	                "is-required": true / false,
   	                "value-encryption": true / false
                },
                "expiration-timestamp": {
   	                "is-required": true / false,
   	                "value-encryption": true / false
                },
                "expiration-timezone": {
   	                "is-required": true / false,
   	                "value-encryption": true / false
                },
                "additional-image": {
   	                "is-required": true / false,
   	                "value-encryption": true / false
                },
                "additional-image-text": {
   	                "is-required": true / false,
   	                "value-encryption": true / false
                },
                "strip-image": {
	               "is-required": true/false,
	               "value-encryption": true/false
                },
                "card-balance-value": {
   	                "is-required": true / false,
   	                "value-encryption": true / false
                },
                "card-pin-value": {
   	                "is-required": true / false,
   	                "value-encryption": true / false
                },
                "event-number": {
   	                "is-required": true / false,
   	                "value-encryption": true / false
                },
                "barcode-value": {
   	                "is-required": true / false,
   	                "value-encryption": true / false
                },
                "user-email": {
                "is-required": true / false,
                "value-encryption": true / false
                },
                "user-phone": {
                "is-required": true / false,
                "value-encryption": true / false
                },
                "relevance-location-address1": {                  // 10 fields
                        "is-required": true / false,
   	                "value-encryption": true / false
                },
                "relevance-location-latitude1": {
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "relevance-location-longitude1": {
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "relevance-text1": {
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "relevance-location-address2": {
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "relevance-location-latitude2": {
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "relevance-location-longitude2": {
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "relevance-text2": {
                        "is-required": true / false,
                          "value-encryption": true / false
                },
                "ibeacon-uuid1": {                                // 10 fields
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "ibeacon-major1": {
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "ibeacon-minor1": {
                        "is-required": true / false,
                         "value-encryption": true / false
                },
                "ibeacon-relevance-text1": {
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "ibeacon-uuid2": {
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "ibeacon-major2": {
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "ibeacon-minor2": {
                        "is-required": true / false,
                        "value-encryption": true / false
                },
                "ibeacon-relevance-text2": {
                        "is-required": true / false,
                        "value-encryption": true / false
                }
        }
}

Request Example: Gift Card

Copy to Clipboard

Header:
X-Api-Key : xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Request:
{
	"action": "UpdatePassIssuanceLink",
	"link-name": "TestIssuanceLink",
        "issuance-link-id": "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
	"pass-template-id": "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
	"link-expiration-timestamp": "2020/10/23T00:00-10:00",
	"link-expiration-timezone": "America/New_York",
	"link-generation-limit": 100,
	"link-status": "active",
        “update-pass-data” :  true,
	"encryption-settings": {
		"encryption-name": "aes-cbc",
		"secret-key": "dNJWdAIchrX7OQflNEk1quq3CvjngmXj",
		"iv": "wbJWPb9KLbxo6xpk"
		},
	"link-protection": {
		"checksum-algorithm": "crc32",
		"checksum-applied": "query-string"
		},
	"pass-variables":{
		"pass-id": {
			"is-required": true,
			"value-encryption": false
		},
		"gift-card-number": {
			"is-required": true,
			"value-encryption": true
		},
		"card-balance-value":{
			"is-required": true,
			"value-encryption": true
		},
		"card-pin-value":{
			"is-required": true,
			"value-encryption": true
		}
	}
}

Response Success Example: Gift Card

Copy to Clipboard

Response Failure Example: Gift Card

Copy to Clipboard

CreatePassTemplate #

The CreatePassTemplate API is used to create a Pass Template for a gift card Pass. The following table provides a detailed description of certain variables that can be used in each API call to create or update Pass Templates for gift cards. The required params for a gift card Pass Template are: action, api-key, pass-template-type, pass-template-subtype, pass-template-name, merchant-name, background-color, card-number, barcode-type, text-color, and description.

Params/Variables	Format	Description
action	Mandatory, Alphabetic (a-zA-Z)	This is the name of the function you want to execute with the API.
x-api-key	Mandatory, Alphanumeric (a-zA-Z0-9), Case-Sensitive. This is set in the request header param.	This is a random key that is assigned to an account and can be used for authorization. You can find and regenerate this key on the ‘API Settings’ page.
pass-template-type	Mandatory. The expected value is “gift-card”	This defines the type of Pass that will be used for creating the Pass Template.
pass-template-subtype	Mandatory. The expected value is “gift-card-type1”	This defines the sub type for the Gift Card Template. For now, we only have one subtype.
pass-template-name	Mandatory. Alphanumeric (A-Za-z0-9)	This is used as an internal name to identify the Pass Template.
merchant-logo	Optional, Alphanumeric (A-Za-z0-9). Web URL – Accepts PNG images only	This PNG image is used only for Apple Wallet Passes. Rectangular images are required
merchant-logo-gpay	Optional, Alphanumeric (A-Za-z0-9). Web URL – Accepts PNG images only	This PNG image is used only for Google passes. Circular images are preferred. Any image that is not circular will be masked into a circular image.
merchant-name	Mandatory, Alphanumeric (A-Za-z0-9)	This is the Merchant Name for the Gift Card. If “merchant-logo” is set then this value won’t be displayed on Apple Wallet Passes.
strip-image	Optional, Alphanumeric (A-Za-z0-9). Web URL – Accepts PNG images only	The strip image is displayed below the logo and Merchant Name on both Apple Wallet and Google Pay Passes, as a rectangular image across the middle of the Pass.
background-color	Mandatory, Numeric (0-9). 6 digit hexadecimal color code preceded by hash “#”	This value defines the background color of the Pass, for both Apple Wallet and Google Pay Passes.
card-number	Mandatory, Alphanumeric (A-Za-z0-9)	The gift card number appears below the barcode on both Apple Wallet and Google Pay Passes.
card-balance	Optional, Numeric (0-9)	The monetary value or balance of the gift card. The currency will always be considered as US$.
card-pin-label	Optional, Alphanumeric (A-Za-z0-9)	The label for the card-pin field. If not set but “card-pin” is set, then a default value “PIN” will be used on the Pass.
card-pin	Optional, Alphanumeric (A-Za-z0-9)	The PIN number for the gift card. Most gift cards use a PIN number as an additional security method for authentication purposes.
event-number-label	Optional, Alphanumeric (A-Za-z0-9)	The label for “event-number” field. If not set and “event-number” is set, then a default value “EVENT NUMBER” will be used on the pass.
event-number	Optional, Alphanumeric (A-Za-z0-9)	The event number field is used by some merchants to further identify the gift card.
message1-label	Optional, Alphanumeric (A-Za-z0-9)	The label for the message1 field.
message1	Optional, Alphanumeric (A-Za-z0-9)	This field is used to display any message. It is displayed on the back of apple pass, and below the pass for Google.
message2-label	Optional, Alphanumeric (A-Za-z0-9)	The label for the message2 field.
message2	Optional, Alphanumeric (A-Za-z0-9)	This field is used to display any message. It is displayed on the back of apple pass, and below the pass for Google.
text-module-label	Optional, Alphanumeric (A-Za-z0-9)	The label for the text-module field.
text-module	Optional, Alphanumeric (A-Za-z0-9)	This field is also used to display any message like the message fields. It is displayed on the back of Apple Wallet Pass, and below the Pass for Google Pay.
info-module-label	Optional, Alphanumeric (A-Za-z0-9)	The label for the info-module field.
info-module	Optional, Alphanumeric (A-Za-z0-9)	This field is also used to display any message like the message fields. It is displayed on the back of Apple Wallet Pass, and below the Pass for Google Pay. When the Pass Status is updated, this field value is updated with the appropriate message reflecting the status.
home-page-uri-label	Optional, Alphanumeric (A-Za-z0-9)	The label for the home page URI.
home-page-uri	Optional, Alphanumeric (A-Za-z0-9)	This field is used to display any web page link which may contain any additional information about the Passes. The links are clickable on both Apple Wallet and Google Pay Passes and will open in a browser.
link1-label	Optional, Alphanumeric (A-Za-z0-9)	The label for the link1 field.
link1-type	Optional, Alphabetic (A-Za-z). Accepted values: “email”, “geo-location”, “map-link”, “phone”, or “web-link”	This field specifies what the type of link will be for link1 field value.
link1	Optional, Alphanumeric (A-Za-z0-9)	Based on the value provided in the link1-type field, this field can have an email id, a geolocation, a google map link, a phone number or a web link. The value will be validated based on the type set in the link1-type field. On Google Pay Passes, an icon will be displayed beside the field value to identify the type of field. E.g. the map link/geolocation will have a map icon.
link2-label	Optional, Alphanumeric (A-Za-z0-9)	The label for the link2 field.
link2-type	Optional, Alphabetic (A-Za-z). Accepted values: “email”, “geo-location”, “map-link”, “phone”, or “web-link”	This field specifies what the type of link will be for link2 field value.
link2	Optional, Alphanumeric (A-Za-z0-9)	Based on the value provided in the link2-type field, this field can have an email id, geolocation, a google map link, a phone number or a web link. The value will be validated based on the type set in the link2-type field. On Google Pay Passes, an icon will be displayed beside the field value to identify the type of field. E.g. the map link/geolocation will have a map icon.
text-color	Mandatory, Numeric (0-9). 6 digit hexadecimal color code preceded by hash “#”	This value defines the text color for Apple Wallet Passes only. Google controls the color for the values displayed on the Google Pay Pass, which is either black or white, based on the background color of the Pass.
description	Mandatory, Alphanumeric (A-Za-z0-9)	This field provides a description for the pass, which is used as a voice-over to describe Passes for blind or low vision users for Apple Wallet Passes only.
linked-apps	Optional, Alphanumeric (A-Za-z0-9)	This is a comma-separated list of iTunes apps, which are displayed on the back of the apple passes.
ibeacons	Optional, Alphanumeric (A-Za-z0-9).Format: “proximity-uuid”:”UUID VALUE”, “major”:”MAJOR VALUE”, “minor”:”MINOR VALUE”, “relevant-text”:”RELEVANCE TEXT”	ibeacons are only applicable for Apple Wallet Passes. They are used to display messages on the lock screens of IOS mobile devices based on the values set.
additional-image	Optional, Alphanumeric (A-Za-z0-9). Web URL	This image is displayed only on Google Pay Passes, in the area below the pass in between the additional details.
additional-image-text	Optional, Alphanumeric (A-Za-z0-9)	This value provides information that is linked to the additional image.
expiration-setting	Optional. Alphabetic (A-Za-z). Accepted Values: “default” or “auto”	If this is not set and expiry-date is set, then “default” will be considered by default.
expiry-date	Optional, Alphanumeric (A-Za-z0-9) Format: mm/dd/yyyy hour:min AM/PM	The date/time value for the Pass expiration, if not set specifically for individual Passes.
expiry-timezone	Optional, Alphanumeric (A-Za-z0-9)	The timezone name. E.g. America/New_York. Use the long names listed in the Appendix.
auto-expire-number-days	Optional, Numeric (0-9)	This is the number of days post install to expire passes. If “auto” is set for expiration-setting, then auto-expire-number-days or auto-expire-number-hours is mandatory.
auto-expire-number-hours	Optional, Numeric (0-9)	This is the number of hours post install to expire passes. If “auto” is set for expiration-setting, then auto-expire-number-days or auto-expire-number-hours is mandatory.
auto-expire-timezone	Optional, Alphanumeric (A-Za-z0-9)	The timezone name. E.g. America/New_York. Use the long names listed in the Appendix. If “auto” is set for expiration-setting, then this field is mandatory.
auto-expire-roundoff-midnight	Optional. Alphabetic (A-Za-z). Accepted Values: “true” or “false”	If this is set to true, then the expiration timestamp calculated based on the number of days/hours will be rounded off to midnight. If not set, false will be considered by default.
barcode-type	Mandatory, Alphabetic (A-Za-z). Accepted values: “QRCODE”, “AZTEC”, “PDF417”, or “CODE128”	The barcode type for all Passes installed using this Pass Template.
barcode-value	Optional, Alphanumeric (A-Za-z0-9)	This is the default barcode value, which will be used for Passes if no value is provided.
autogenerate-barcode-values	Optional, Alphabetic (A-Za-z). Accepted values: “True” or “False”.	This field defines if the barcode values will be generated automatically for Passes.
autogenerate-barcode-value-type	Optional, Alphabetic (A-Za-z). Accepted values: “Numeric”, “Alphabet”, or “Alphanumeric”.	This field defines the type of barcode values that will be auto-generated for Passes if the autogenerate-barcode-values is set to “True”.
autogenerate-barcode-value-length	Optional, Numeric (0-9). Accepted values: 10 – 100	This field defines the length of the auto-generated barcode value for Passes if the autogenerate-barcode-values is set to “True”.
relevant-locations	Optional, Alphanumeric (a-zA-Z0-9)Format: “latitude”:”COORDINATES”, “longitude”:”COORDINATES”, “relevant-text”:”RELEVANCE TEXT”	These fields are used to display text information for Passes, when the device that the Pass is installed on is detected at the relevant location. The locations are defined by the latitude/longitude co-ordinates. The relevant-text is the message displayed for Apple Wallet Passes. For Google Pay Passes, a predefined message is displayed.
disable-pass-sharing	Optional, Alphabetic (A-Za-z). Accepted values: “True” or “False”	This field defines if Passes installed for this Pass Template can be installed on multiple devices or not.
never-installed-ttl	Optional, Numeric (0-9)	This field sets the number of hours post which an uninstalled pass will be archived.
never-installed-archive-timestamp	Optional, Numeric (0-9)	This field, if set, defines the timestamp post which an uninstalled timestamp will be archived. This value will be considered if never-installed-ttl is also set.
expired-pass-ttl	Optional, Numeric (0-9)	This field sets the number of hours post which an expired pass will be archived.
redeemed-pass-ttl	Optional, Numeric (0-9)	This field sets the number of hours post which a redeemed pass will be archived.
voided-pass-ttl	Optional, Numeric (0-9)	This field sets the number of hours post which a voided pass will be archived.

Request: Gift Card

Copy to Clipboard

Header:
X-Api-Key : XXXXXXXXXXXXXXXXXXXXXXX

Request:
{
   "action": "createPassTemplate",
   "pass-template-type": "gift-card",
   “pass-template-subtype” : “gift-card-type1”,
   "pass-template-name": "PassTemplateName",
   "appearance" : {
        "merchant-logo": "IMAGE PATH",
        "merchant-logo-gpay": "IMAGE PATH",
        "merchant-name": "MERCHANT NAME",
        "strip-image": "IMAGE PATH",
        "background-color": "COLOR HASH CODE"
    },
    "universal-fields": {
        "card-number": "GIFT CARD NUMBER"
        "card-balance": "CARD BALANCE VALUE",
        "card-pin-label": "PIN LABEL",
        "card-pin": "PIN VALUE",
        “event-number-label” : “EVENT NUMBER LABEL”,
        "event-number": "EVENT NUMBER VALUE",
        "message1-label" : "MESSAGE 1 LABEL",
        "message1": "MESSAGE 1 TEXT",
        "message2-label" : "MESSAGE 2 LABEL",
        "message2": "MESSAGE 2 TEXT",
        "text-module-label" : "TEXT MODULE LABEL",
        "text-module": "TEXT MODULE VALUE",
        "info-module-label" : "INFO MODULE LABEL",
        "info-module": "INFO MODULE VALUE",
        "home-page-uri-label" : "TEXT FOR HOME PAGE URI",
        "home-page-uri": "HOME PAGE LINK",
        "link1-label" : "TEXT FOR ADDITIONAL LINK 1",
        "link1": "ADDITIONAL LINK 1",
        “link1-type” : “TYPE OF LINK”,
        "link2-label" : "TEXT FOR ADDITIONAL LINK 2",
        "link2": "ADDITIONAL LINK 2",
        “link2-type” : “TYPE OF LINK”,
    },
    "apple-wallet-fields": {
 "text-color": "COLOR HASH CODE",
 "description": "Pass description used for VoiceOver Information",
 "linked-apps": "COMMA SEPARATED LIST OF ITUNES STORE ID",
 "ibeacons":[{
            "proximity-uuid":"UUID VALUE",
            "major":"MAJOR VALUE",
            "minor":"MINOR VALUE",
            "relevant-text":"RELEVANCE TEXT"
 },
    "gpay-fields" : {
 "additional-image": "ADDITIONAL IMAGE URL",
 "additional-image-text": "Image Description"
    },
    "expiration-fields" : {
        “expiration-setting” : “SETTING TYPE”,
        "expiry-date": "EXPIRATION TIMESTAMP",
        "expiry-timezone": "VALID TIMEZONE NAME",
        “auto-expire-number-days” : “NUMBER OF DAYS POST AUTO EXPIRE PASSES”,
        “auto-expire-number-hours” : “NUMBER OF HOURS POST AUTO EXPIRE PASSES”,
        “auto-expire-timezone” : “VALID TIMEZONE NAME”,
        “auto-expire-roundoff-midnight” : false,
    },
    "barcode-fields" : {
        "barcode-type": "BARCODE TYPE",
        "barcode-value": "DEFAULT BARCODE VALUE",
        "autogenerate-barcode-values":true,
        "autogenerate-barcode-value-type": "VALUE TYPE FOR AUTO GENERATED BARCODES",
        "autogenerate-barcode-value-length": "LENGTH OF AUTO GENERATED BARCODE VALUES"
    }
    "relevant-locations":[{
        "latitude":"COORDINATES",
        "longitude":"COORDINATES",
        "relevant-text":"RELEVANCE TEXT"
    },
    "disable-pass-sharing": "TRUE OR FALSE",
    "pass-data-archive-settings": {
 "never-installed-ttl":"NUMBER OF HOURS POST WHICH PASS RECORDS WILL BE ARCHIVED IF NOT INSTALLED", //either this or below option can bet set
 "never-installed-archive-timestamp": "TIMESTAMP WHEN NON INSTALLED PASS RECORDS ARE TO BE ARCHIVED",
 "expired-pass-ttl": "NUMBER OF HOURS POST WHICH EXPIRED PASSES WILL BE ARCHIVED",
 "redeemed-pass-ttl": "NUMBER OF HOURS POST WHICH REDEEMED PASSES WILL BE ARCHIVED",
 "voided-pass-ttl": "NUMBER OF HOURS POST WHICH VOIDED PASSES WILL BE ARCHIVED"
     }
}

Request Example: Gift Card

Copy to Clipboard

Header:
X-Api-Key : xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Request:
{
    "action":"createPassTemplate",
    "pass-template-type":"gift-card",
    “pass-template-subtype” : “gift-card-type1”,
    "pass-template-name":"GIft-card-1",
    "appearance":{
        "merchant-logo":"https://fake-content-url.com/merchant-logo.png",
        "merchant-logo-gpay":"https://fake-content-url.com/merchant-logo-gpay.png",
        "merchant-name":"MERCHANT NAME",
        "strip-image":"https://fake-content-url.com/strip-image.png",
        "background-color":"#c24e4e"
    },
    "universal-fields":{
        "card-number":"1233123",
        "card-balance":"12",
        "card-pin":"12123",
        "event-number":"221",
        "message1-label":"Disclaimer",
        "message1":"This gift card was created for demo purposes only and has no real monetary value.",
        "message2-label":"Online Redemption Instructions",
        "message2":"Enter the number shown below the barcode when prompted",
        "text-module-label":"Terms",
        "text-module":"Your Gift card never expires.",
        "info-module-label":"Information",
        "info-module":"Pull up this gift card at checkout",
        "home-page-uri-label":"Website",
        "home-page-uri":"https://fake-home-page-uri.com",
        "link1-label":"Support",
        "link1":"fake.email@email.com",
        "link1-type":"email",
        "link2-label":"Call",
        "link2":"10000000000",
        "link2-type":"phone"
    },
    "apple-wallet-fields":{
        "text-color":"#ffffff",
        "description":"Mobile Wallet Pass by ABC-1",
        "linked-apps":"123123",
        "ibeacons":[
            {
                "proximity-uuid":"33333",
                "major":"123123",
                "minor":"123123",
                "relevant-text":"Come grab some popcorn!"
            },
            {
                "proximity-uuid":"111111",
                "major":"1236541",
                "minor":"156321",
                "relevant-text":"Come grab some popcorn!"
            }
        ]
    },
    "gpay-fields":{
        "additional-image":"https://fake-content-url.com/additional-image.png",
        "additional-image-text":"Image Description"
    },
    "expiration-fields":{
        "expiry-date":"12/30/2019 11:16 AM",
        "expiry-timezone":"Asia/Kolkata"
    },
    "barcode-fields":{
        "barcode-type":"QRCODE",
        "barcode-value":"12025511",
        "autogenerate-barcode-values":false,
        "autogenerate-barcode-value-type":"numeric",
        "autogenerate-barcode-value-length":"10"
    },
    "relevant-locations":[
        {
            "latitude":"45.30",
            "longitude":"72.86",
            "relevant-text":"Come grab some popcorn!"
        },
        {
            "latitude":"19.30",
            "longitude":"72.86",
            "relevant-text":"Come grab some popcorn!"
        }
    ],
    "disable-pass-sharing":false,
    "pass-data-archive-settings":{
        "never-installed-ttl":"12",
        "never-installed-archive-timestamp":"1/1/2020 11:19 AM",
        "expired-pass-ttl":"12",
        "redeemed-pass-ttl":"1",
        "voided-pass-ttl":"1"
    }
}

Response Success Example: Gift Card

Copy to Clipboard

Response Failure Example: Gift Card

Copy to Clipboard

UpdatePassTemplate #

The UpdatePassTemplate API is used to update an existing Pass Template for a gift card Pass. The param: pass-update-notification is used to display an update notification on already installed passes, when static data is updated on the template. This param is optional and alphanumeric (A-Za-z0-9).

Request: Gift Card

Copy to Clipboard

Header:
X-Api-Key : XXXXXXXXXXXXXXXXXXXXXX

Request:
{
   "action": "updatePassTemplate",
   "pass-template-type": "gift-card",
   "pass-template-name": "PassTemplateName",
   "appearance" : {
        "merchant-logo": "IMAGE PATH",
        "merchant-logo-gpay": "IMAGE PATH",
        "merchant-name": "MERCHANT NAME",
        "strip-image": "IMAGE PATH",
        "background-color": "COLOR HASH CODE"
    },
    "universal-fields": {
        "card-number": "GIFT CARD NUMBER"
        "card-balance": "CARD BALANCE VALUE",
        "card-pin-label": "PIN LABEL",
        "card-pin": "PIN VALUE",
        “event-number-label” : “EVENT NUMBER LABEL”,
        "event-number": "EVENT NUMBER VALUE",
        "message1-label" : "MESSAGE 1 LABEL",
        "message1": "MESSAGE 1 TEXT",
        "message2-label" : "MESSAGE 2 LABEL",
        "message2": "MESSAGE 2 TEXT",
        "text-module-label" : "TEXT MODULE LABEL",
        "text-module": "TEXT MODULE VALUE",
        "info-module-label" : "INFO MODULE LABEL",
        "info-module": "INFO MODULE VALUE",
        "home-page-uri-label" : "TEXT FOR HOME PAGE URI",
        "home-page-uri": "HOME PAGE LINK",
        "link1-label" : "TEXT FOR ADDITIONAL LINK 1",
        "link1": "ADDITIONAL LINK 1",
        “link1-type” : “TYPE OF LINK”,
        "link2-label" : "TEXT FOR ADDITIONAL LINK 2",
        "link2": "ADDITIONAL LINK 2",
        “link2-type” : “TYPE OF LINK”,
    },
    "apple-wallet-fields": {
        "text-color": "COLOR HASH CODE",
        "description": "Pass description used for VoiceOver Information",
        "linked-apps": "COMMA SEPARATED LIST OF ITUNES STORE ID",
        "ibeacons":[{
            "key":"ibeacon-1",
            "proximity-uuid":"UUID VALUE",
            "major":"MAJOR VALUE",
            "minor":"MINOR VALUE",
            "relevant-text":"RELEVANCE TEXT"
 },
    "gpay-fields" : {
       "additional-image": "ADDITIONAL IMAGE URL",
       "additional-image-text": "Image Description"
    },
    "expiration-fields" : {
        “expiration-setting” : “SETTING TYPE”,
        "expiry-date": "EXPIRATION TIMESTAMP",
        "expiry-timezone": "VALID TIMEZONE NAME",
        “auto-expire-number-days” : “NUMBER OF DAYS POST AUTO EXPIRE PASSES”,
        “auto-expire-number-hours” : “NUMBER OF HOURS POST AUTO EXPIRE PASSES”,
        “auto-expire-timezone” : “VALID TIMEZONE NAME”,
        “auto-expire-roundoff-midnight” : false,
    },
    "barcode-fields" : {
        "barcode-type": "BARCODE TYPE",
        "barcode-value": "DEFAULT BARCODE VALUE",
        "autogenerate-barcode-values":true,
        "autogenerate-barcode-value-type": "VALUE TYPE FOR AUTO GENERATED BARCODES",
        "autogenerate-barcode-value-length": "LENGTH OF AUTO GENERATED BARCODE VALUES"
    }
    "relevant-locations":[{
        "key":"relevant-1",
        "latitude":"COORDINATES",
        "longitude":"COORDINATES",
        "relevant-text":"RELEVANCE TEXT"
    },
    "disable-pass-sharing": "TRUE OR FALSE",
    "pass-data-archive-settings": {
        "never-installed-ttl":"NUMBER OF HOURS POST WHICH PASS RECORDS WILL BE ARCHIVED IF NOT INSTALLED", //either this or below option can bet set
        "never-installed-archive-timestamp": "TIMESTAMP WHEN NON INSTALLED PASS RECORDS ARE TO BE ARCHIVED",
        "expired-pass-ttl": "NUMBER OF HOURS POST WHICH EXPIRED PASSES WILL BE ARCHIVED",
        "redeemed-pass-ttl": "NUMBER OF HOURS POST WHICH REDEEMED PASSES WILL BE ARCHIVED",
        "voided-pass-ttl": "NUMBER OF HOURS POST WHICH VOIDED PASSES WILL BE ARCHIVED"
     },
    “pass-update-notification” : “UPDATE NOTIFICATION MESSAGE”
}

Request Example: Gift Card

Copy to Clipboard

Header:
X-Api-Key : xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Request:
{
    "action":"updatePassTemplate",
    "pass-template-type":"gift-card",
    "pass-template-name":"GIft-card-1",
    "appearance":{
        "merchant-logo":"https://fake-content-url.com/merchant-logo.png",
        "merchant-logo-gpay":"https://fake-content-url.com/merchant-logo-gpay.png",
        "merchant-name":"MERCHANT NAME",
        "strip-image":"https://fake-content-url.com/strip-image.png",
        "background-color":"#c24e4e"
    },
    "universal-fields":{
        "card-number":"1233123",
        "card-balance":"12",
        "card-pin":"12123",
        "event-number":"221",
        "message1-label":"Disclaimer",
        "message1":"This gift card was created for demo purposes only and has no real monetary value.",
        "message2-label":"Online Redemption Instructions",
        "message2":"Enter the number shown below the barcode when prompted",
        "text-module-label":"Terms",
        "text-module":"Your gift card never expires.",
        "info-module-label":"Information",
        "info-module":"Pull up this gift card at checkout",
        "home-page-uri-label":"Website",
        "home-page-uri":"https://fake-home-page-uri.com",
        "link1-label":"Support",
        "link1":"fake.email@email.com",
        "link1-type":"email",
        "link2-label":"Call",
        "link2":"10000000000",
        "link2-type":"phone"
    },
    "apple-wallet-fields":{
        "text-color":"#ffffff",
        "description":"Mobile Wallet Pass by ABC-1",
        "linked-apps":"123123",
        "ibeacons":[
            {
                "key":"ibeacon-1",
                "proximity-uuid":"33333",
                "major":"123123",
                "minor":"123123",
                "relevant-text":"Come grab some popcorn!"
            },
            {
                "key":"ibeacon-2",
                "proximity-uuid":"111111",
                "major":"1236541",
                "minor":"156321",
                "relevant-text":"Come grab some popcorn!"
            }
        ]
    },
    "gpay-fields":{
        "additional-image":"https://fake-content-url.com/additional-image.png",
        "additional-image-text":"Image Description"
    },
    "expiration-fields":{
        "expiry-date":"12/30/2019 11:16 AM",
        "expiry-timezone":"Asia/Kolkata"
    },
    "barcode-fields":{
        "barcode-type":"QRCODE",
        "barcode-value":"12025511",
        "autogenerate-barcode-values":false,
        "autogenerate-barcode-value-type":"numeric",
        "autogenerate-barcode-value-length":"10"
    },
    "relevant-locations":[
        {
            "key":"relevant-1",
            "latitude":"45.30",
            "longitude":"72.86",
            "relevant-text":"Come grab some popcorn!"
        },
        {
            "key":"relevant-2",
            "latitude":"19.30",
            "longitude":"72.86",
            "relevant-text":"Come grab some popcorn!"
        }
    ],
    "disable-pass-sharing":false,
    "pass-data-archive-settings":{
        "never-installed-ttl":"12",
        "never-installed-archive-timestamp":"1/1/2020 11:19 AM",
        "expired-pass-ttl":"12",
        "redeemed-pass-ttl":"1",
        "voided-pass-ttl":"1"
    },
    “pass-update-notification” : “Your pass has been updated!”
}

Response Success Example: Gift Card

Copy to Clipboard

Response Failure Example: Gift Card

Copy to Clipboard

Was this article helpful?

Updated on October 3, 2023

Help Center

Introduction to Gift Cards #

GeneratePass #

Request: Gift Card

Request Example: Gift card

Response Success Example:

Response Failure Example:

UpdatePassData #

Request: Gift card

Request Example: Gift card

Response Success Example: Gift Card

Response Failure Example: Gift Card

GetPassData #

Request: Gift Card

Request Example: Gift Card

Response Success Example: Gift Card

Response Failure Example: Gift Card

GetPassTemplate #

Request: Gift Card

Request Example: Gift Card

Response Success Example: Gift Card

Response Failure Example: Gift Card

CreatePassIssuanceLink #

Request: Gift Card

Request Example: Gift Card

Response Success Example: Gift Card

Response Failure Example: Gift Card

UpdatePassIssuanceLink #

Request: Gift Card

Request Example: Gift Card

Response Success Example: Gift Card

Response Failure Example: Gift Card

CreatePassTemplate #

Request: Gift Card

Request Example: Gift Card

Response Success Example: Gift Card

Response Failure Example: Gift Card

UpdatePassTemplate #

Request: Gift Card

Request Example: Gift Card

Response Success Example: Gift Card

Response Failure Example: Gift Card

Was this article helpful?

Product

Solution

Resources

Company
